PRODUCT

Chain mesh belt

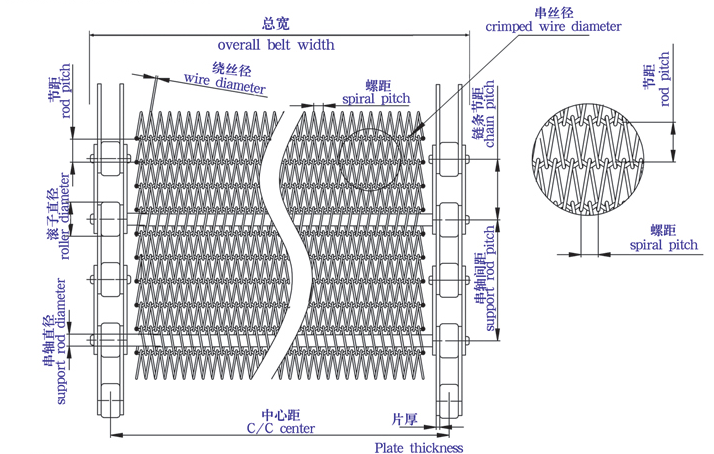

The chain mesh belt is composed of wire mesh, cross rods and chains. The wire mesh features a unilateral spiral or a bilateral spiral structure. The positive drive chain edge steel belts are driven by chain to ensure operational stability and to decrease the loads on the surface, which can be used in the -55℃ to 1150℃ temperature range.

Therefore, the mesh belt is usually used in the ovens, quenching furnaces, cleaning machines, frying machines, quick-freezing machines and other dynamic temperature equipment. It can be used for heat treatment, metal processing, food processing, leisure food production and ceramics production etc.



jiexun



Material

Carbon steel, galvanized, SS201, SS304, SS316

Chain pitch(mm)

12.7, 15.875, 19.05, 25.4, 31.75, 38.1, 50.8, 63.5, 76.2, 101.6

Support rod diameter(mm)

4-16

Wire diameter(mm)

1.0, 1.2, 1.4, 1.5, 1.6, 1.8, 2.0, 2.5, 3.0

Spiral pitch(mm)

2.8-40

Rod pitch(mm)

5-50.8

Belt width(mm)

100-6000

Special specifications are available
